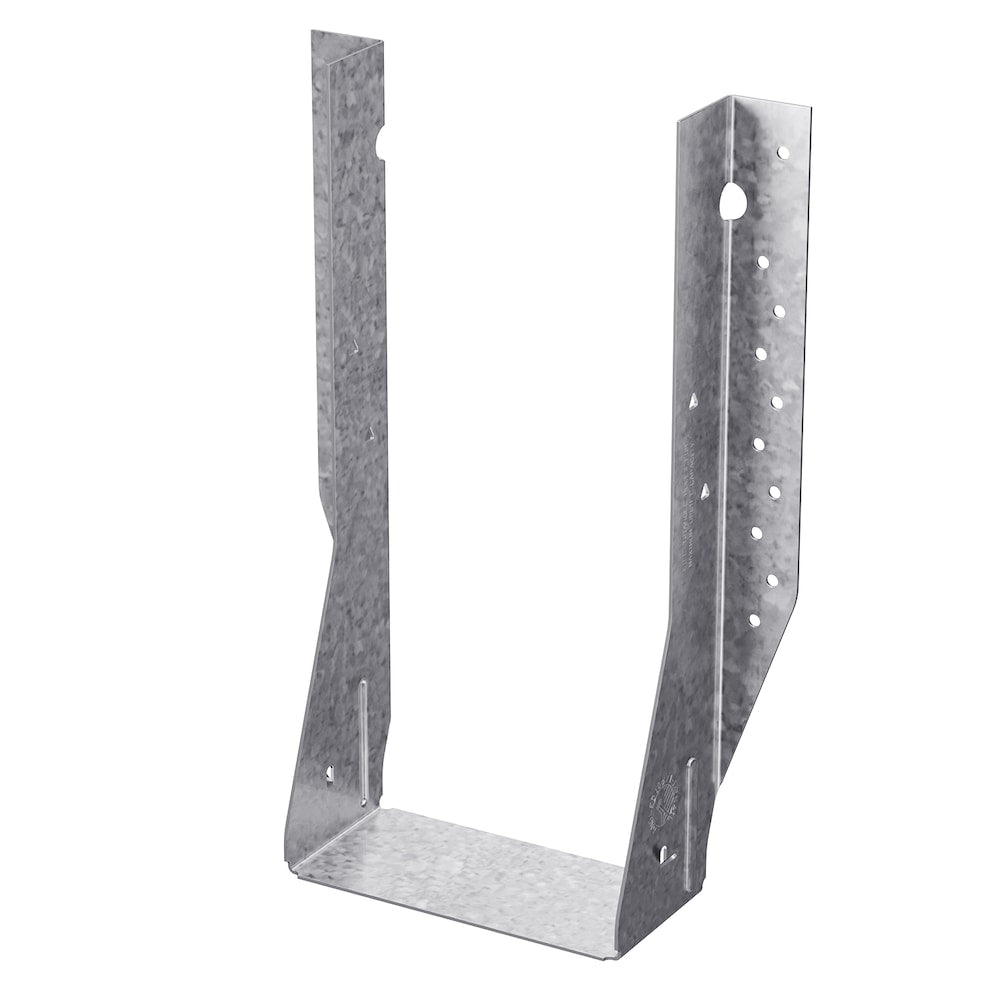

MIU Galvanized Face-Mount Joist Hanger for 5-in x 9-1/2-in Engineered Wood

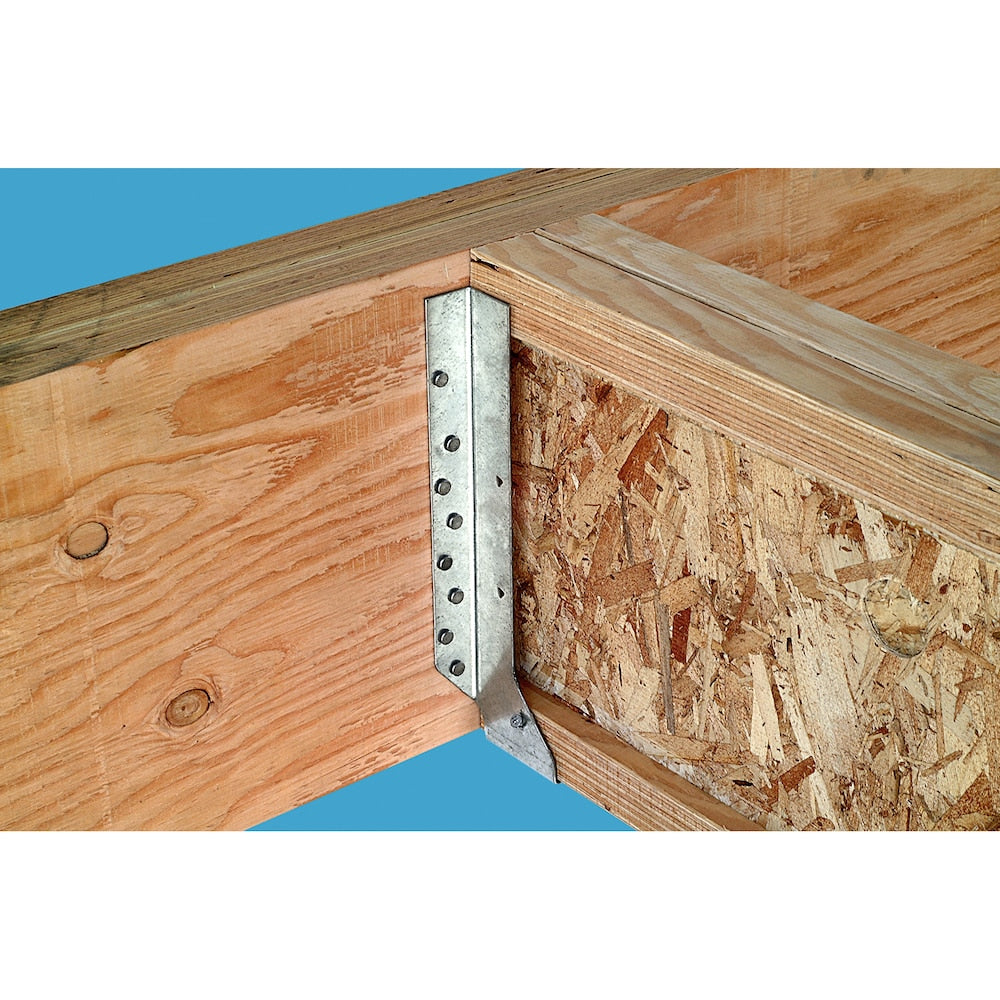

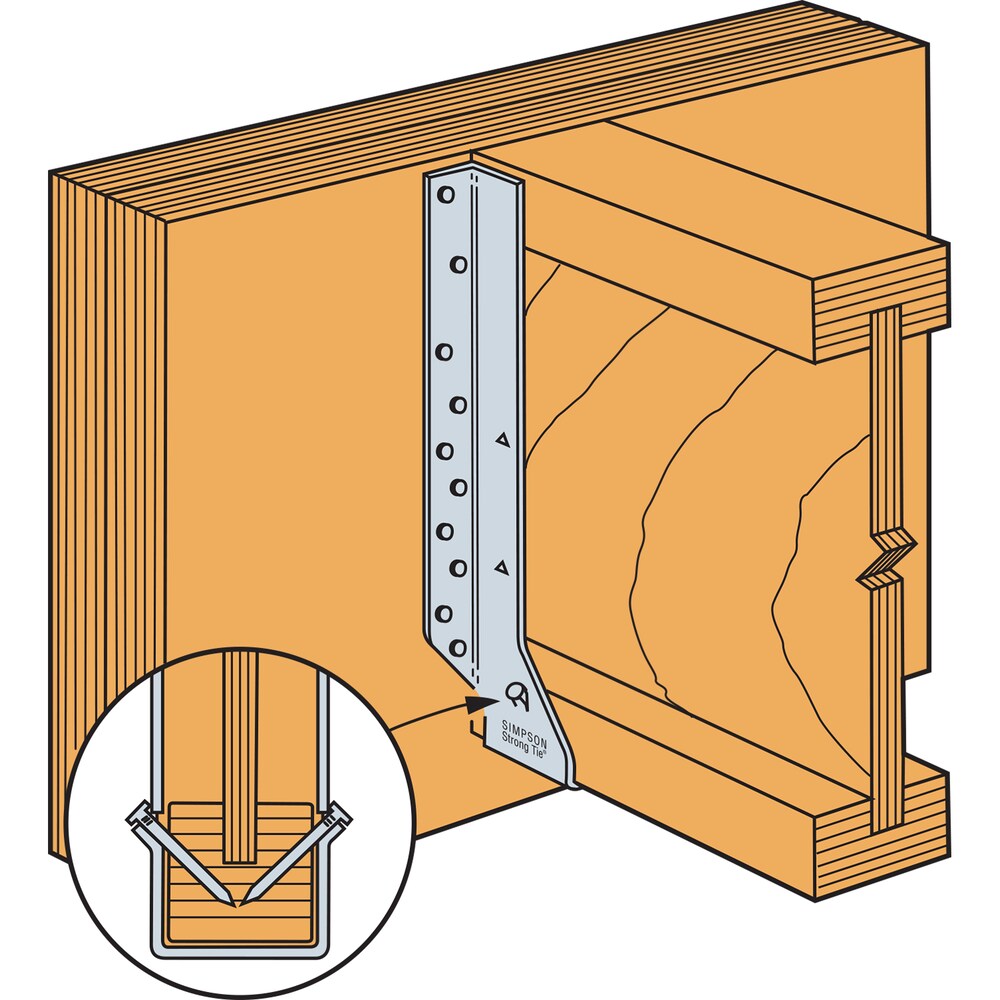

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle These hangers cannot be modified Models will normally accommodate a skew of up to 5-degrees Extra optional triangle holes for additional load Made from 16-gauge steel GalvanizQuantity: 500ed (G90) for extra corrosion resistance
