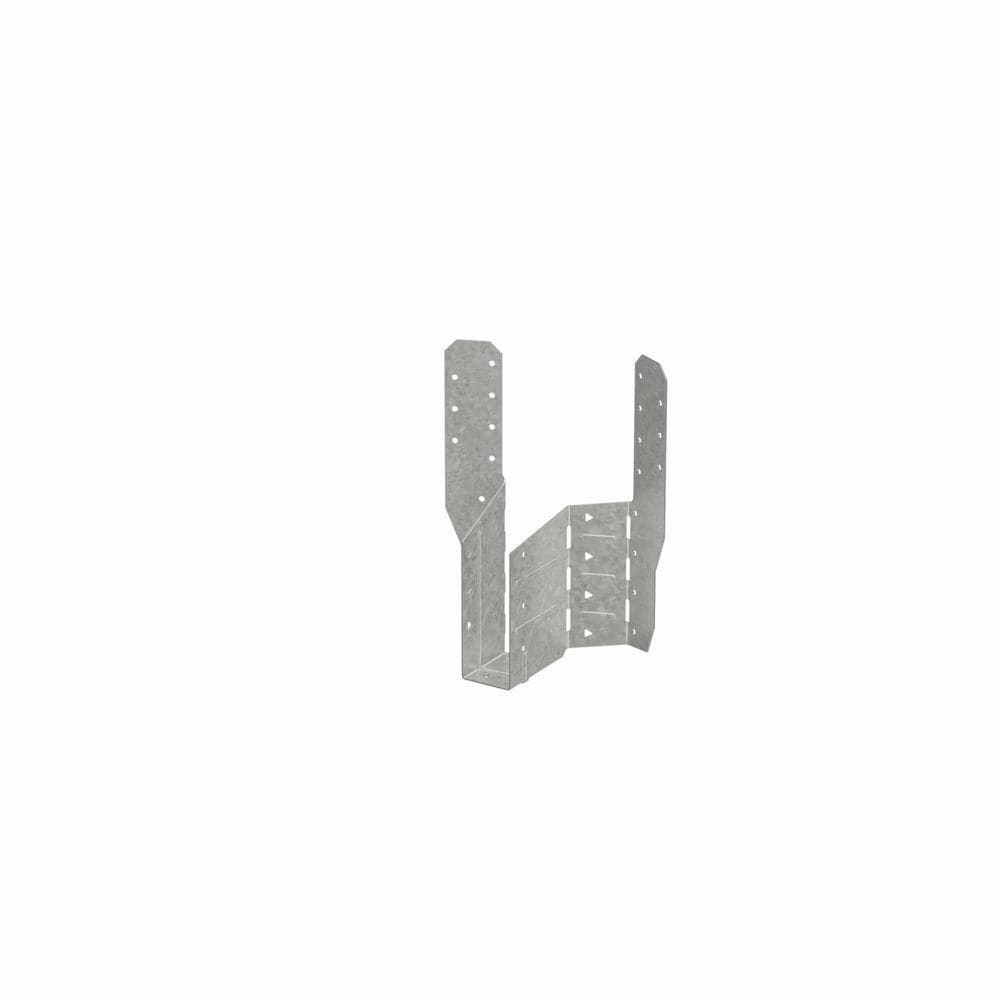

THASL Galvanized Adjustable Truss Hanger for 2x9, Skewed Left

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The THASR/L hangers combine the height adjustability of THA hangers with field skewability, offering maximum flexibility for the installer, and eliminating the need for special orders. Shipped at 22 1/2° left, the THASL29 hanger can be field-skewed from 22 1/2° to 85°. One acute side bend line to ease design and installation Joist fasteners are only required from one side for skews greater than 22-1/2° Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws For top-flange installations, the straps must be field-formed over the header a minimum of 2 in. Minimum carried member: 2x truss Width: 1-5/8 in.
