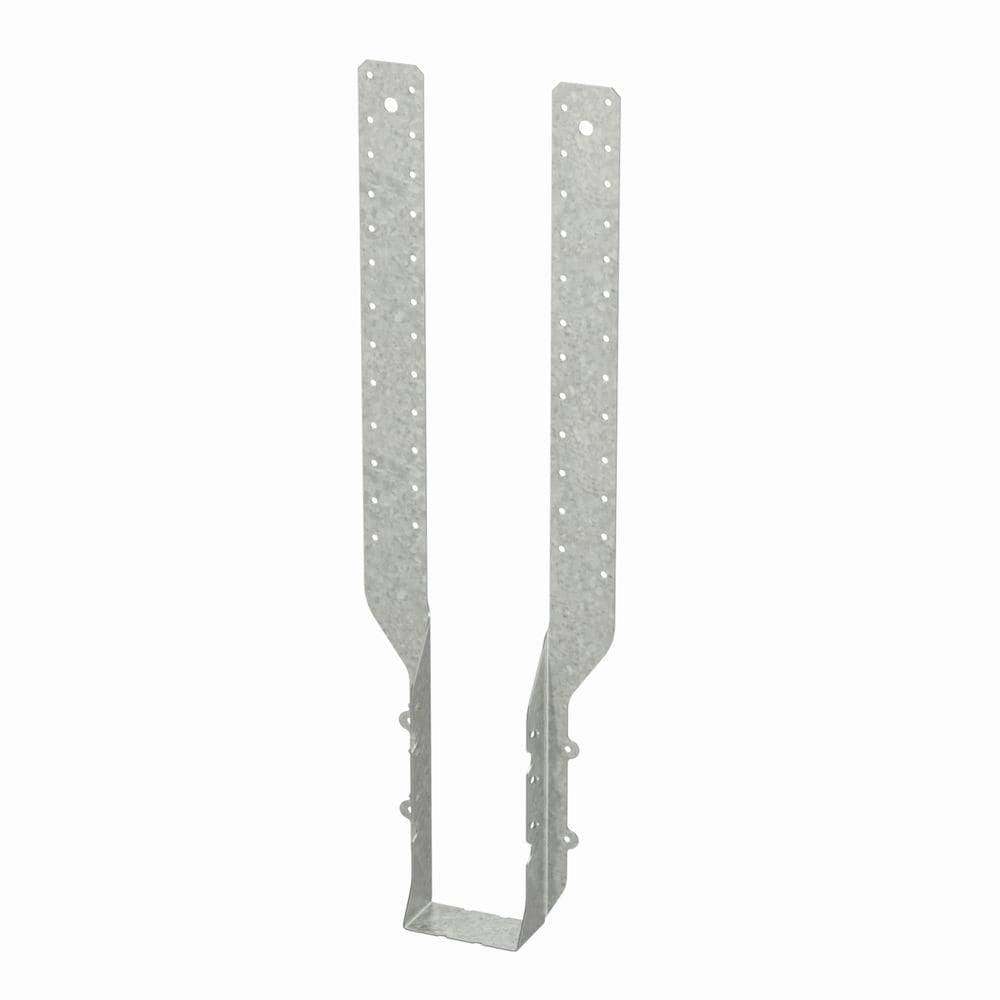

THA 22-3/16 inch Galvanized Adjustable Hanger for Double 2x Truss

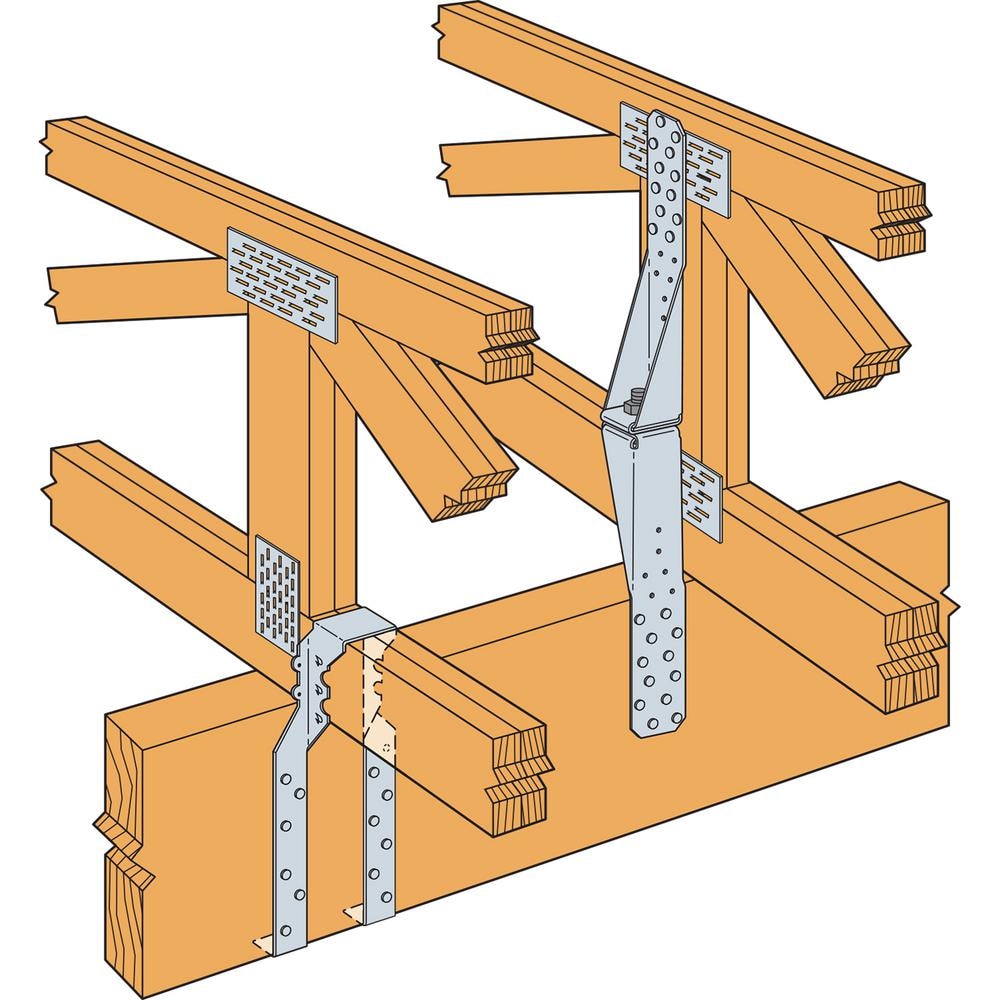

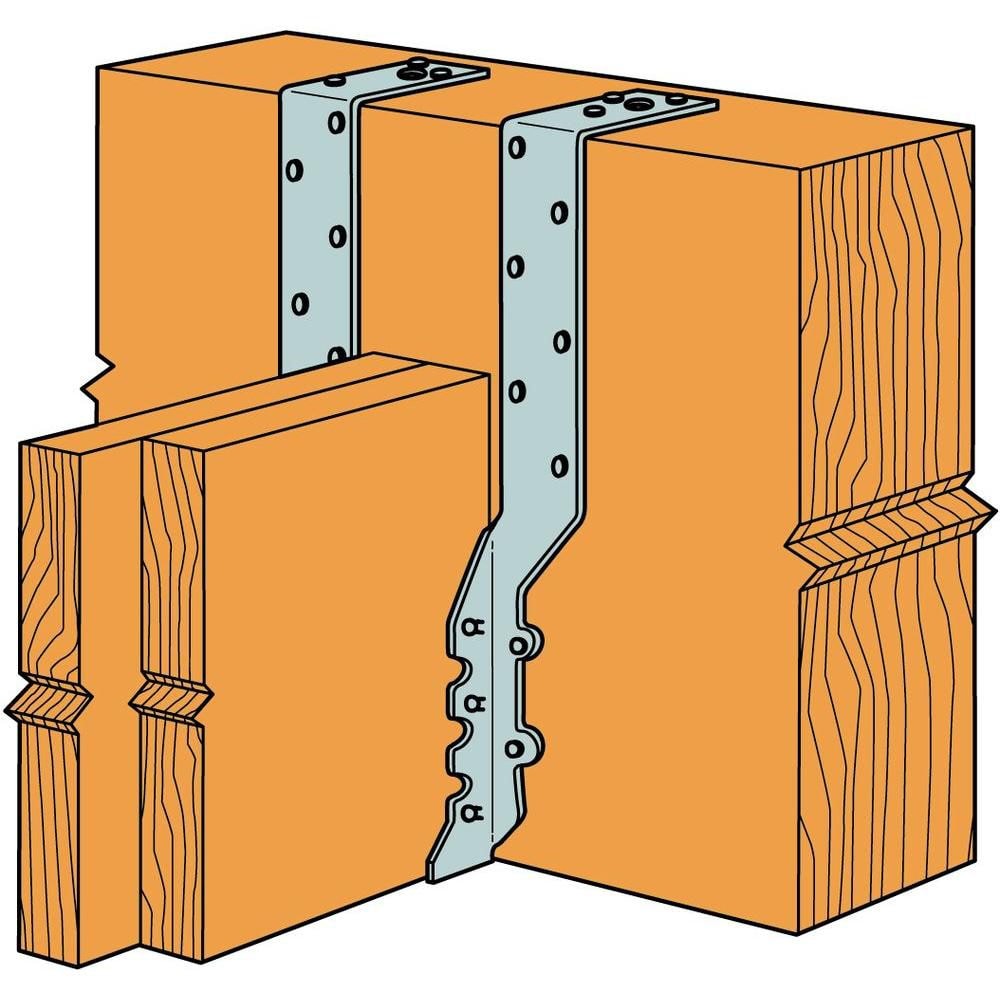

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The THA series hangers have extra long straps that can be field-formed to give height adjustability and top-flange hanger convenience. Can be installed as top-flange or face-mount hangers Seat width: 3-1/8 in. Height: 22-3/16 in. Nominal joist size: double 2x truss Made from 18-gauge steel Galvanized (G90) for extra corrosion resistance
