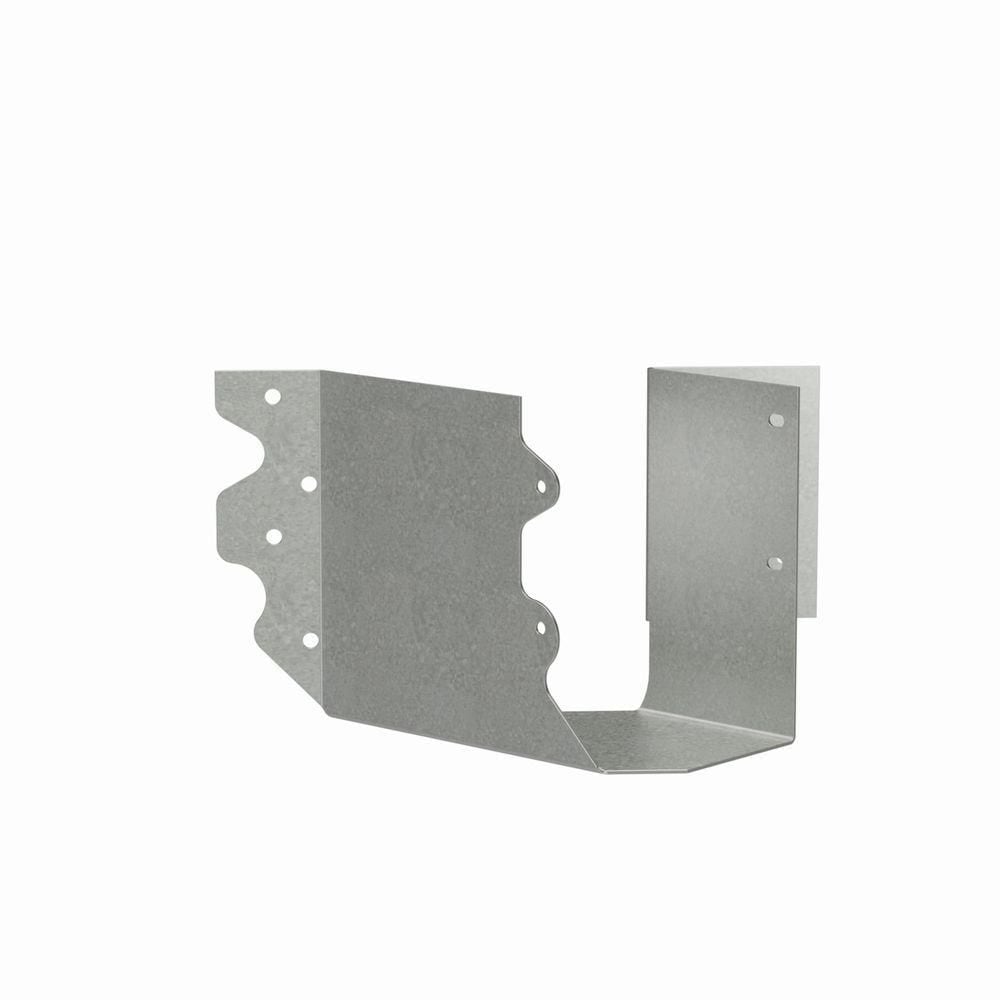

SUR Galvanized Joist Hanger for Double 2x6, Skewed Right

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header. SUR = skewed right These hangers will normally accommodate a 40° to 50° skew The joist end may be square cut or bevel cut Angled nail slots direct nails for proper installation Nominal joist size: Double 2x6 or 2x8 Made from 16-gauge steel
