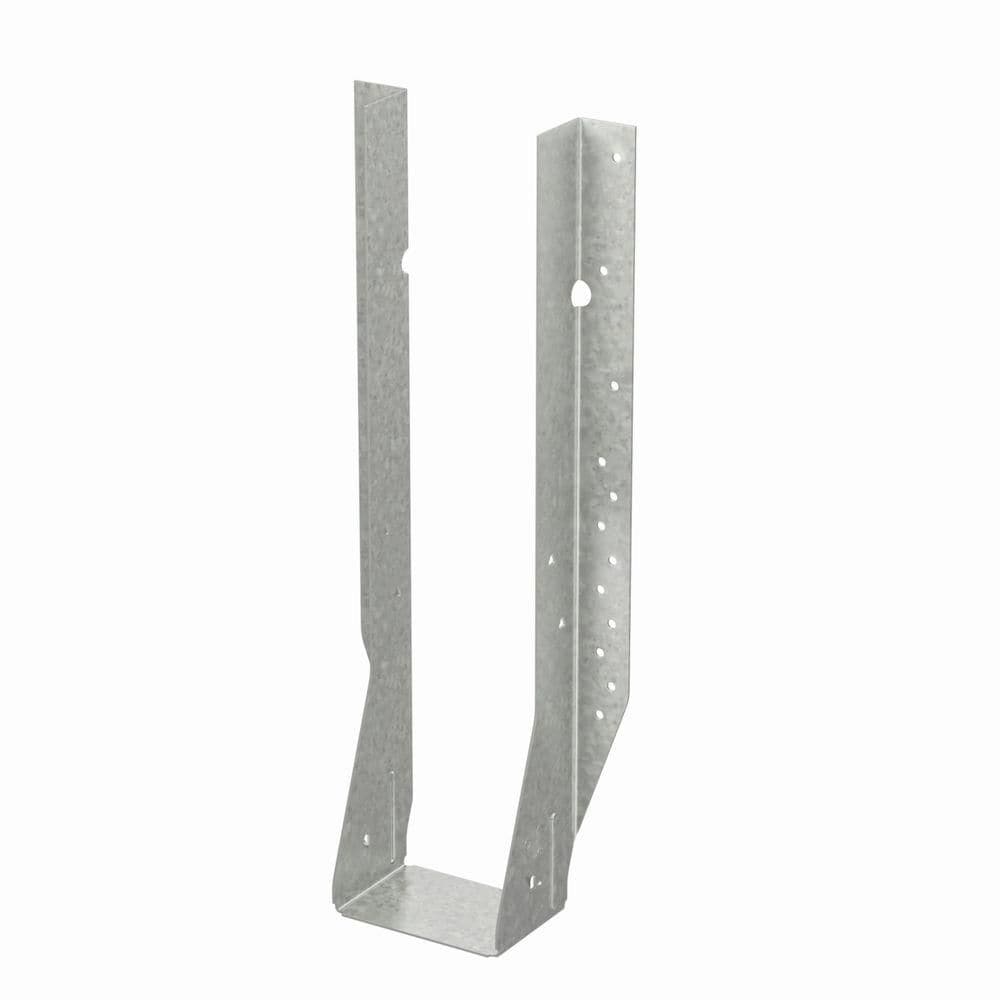

MIU Galvanized Face-Mount Joist Hanger for 3-1/2 inch x 16 inch Engineered Wood

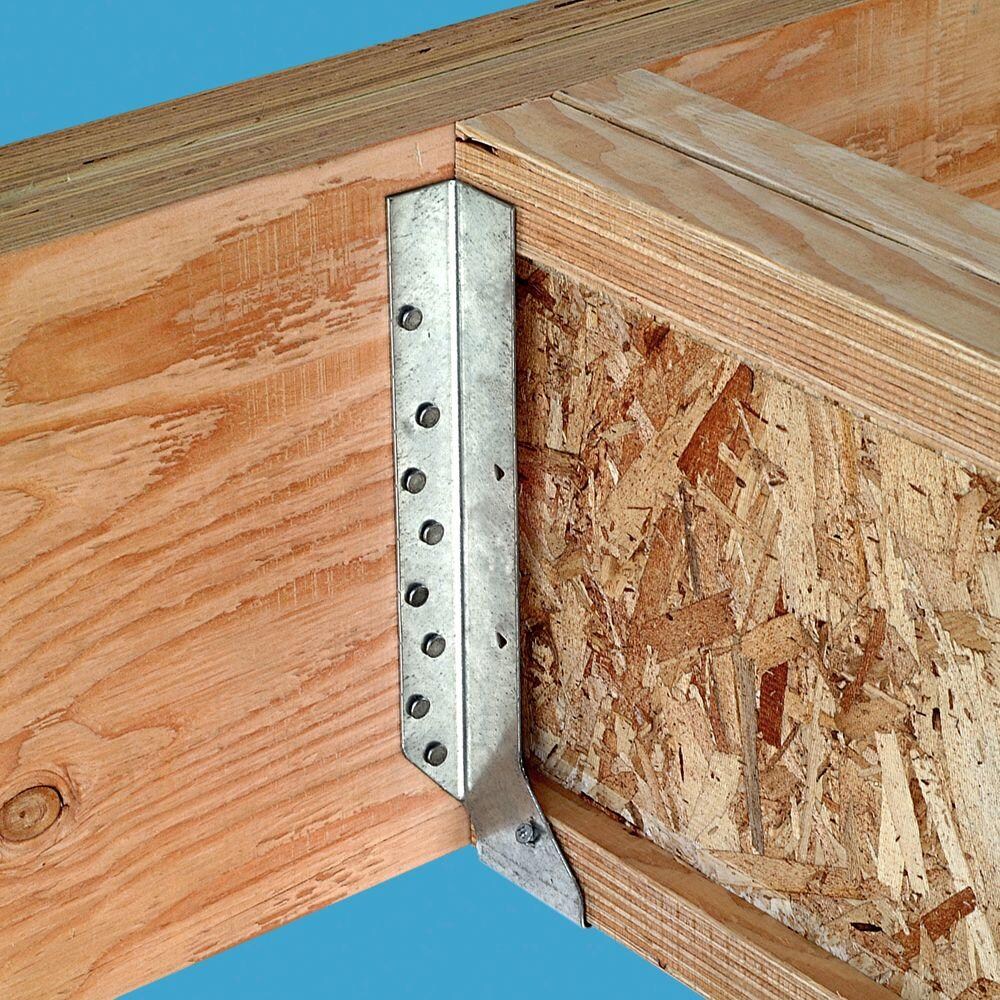

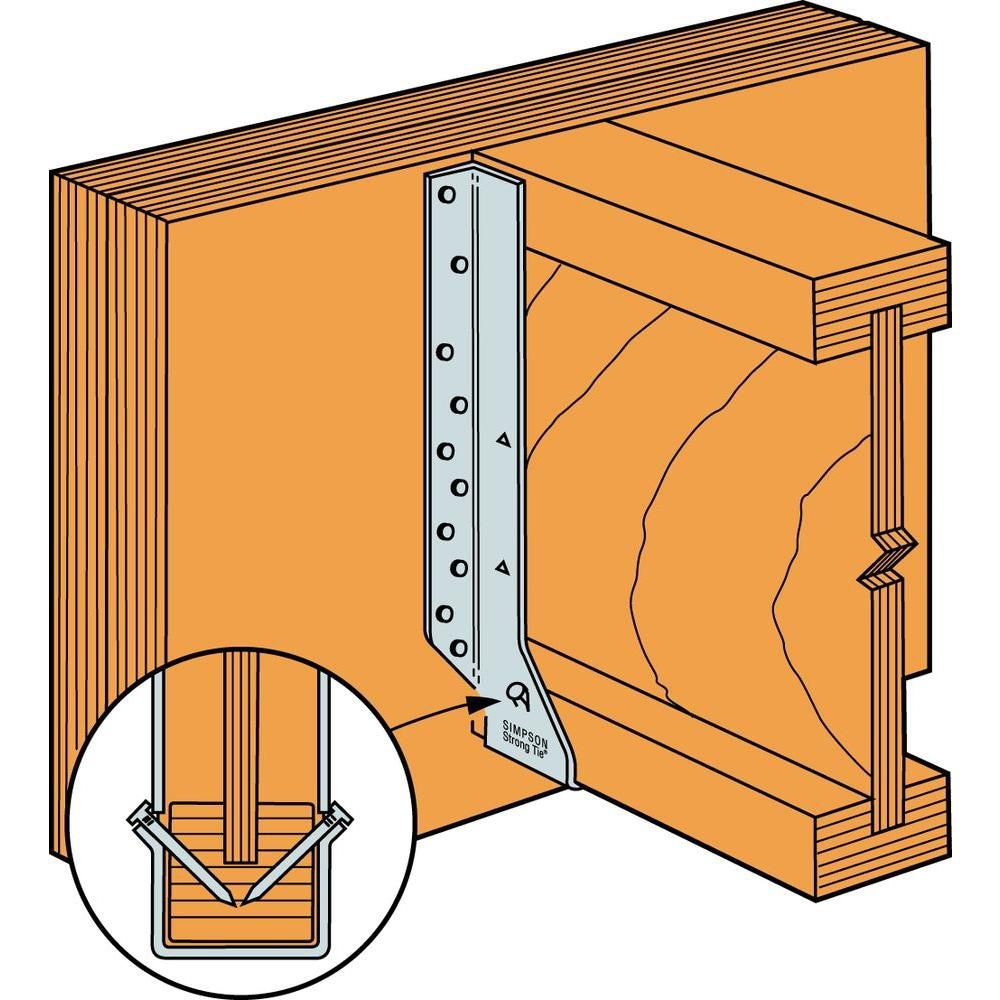

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners. The MIU features positive-angle nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle These hangers cannot be modified Actual joist size: 3-1/2 in. x 16 in. Made from 16-gauge steel Galvanized (G90) for extra corrosion resistance Install with 0.162 in. x 3-1/2 in. nails and 0.148 in. x 1-1/2 in. nails
