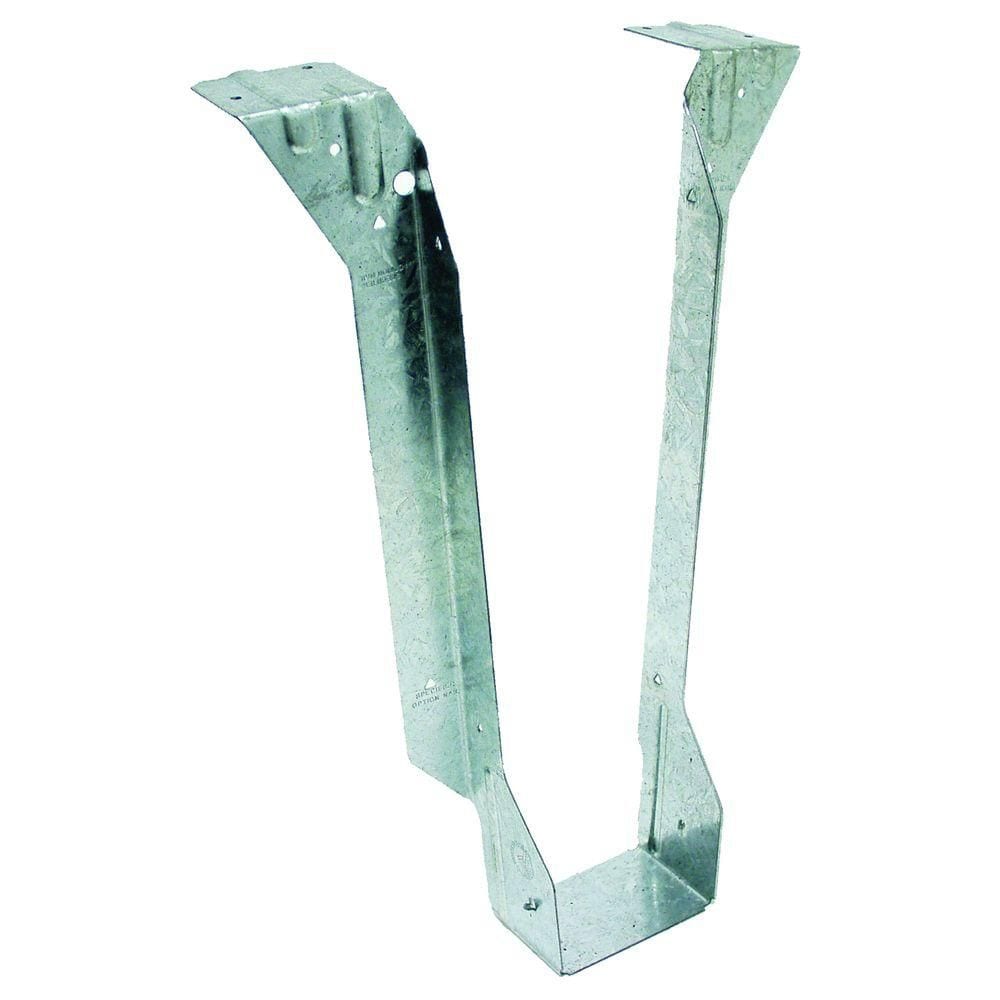

MIT Galvanized Top-Flange Joist Hanger for 3-1/2 inch x 16 inch Engineered Wood
Limited Warranty

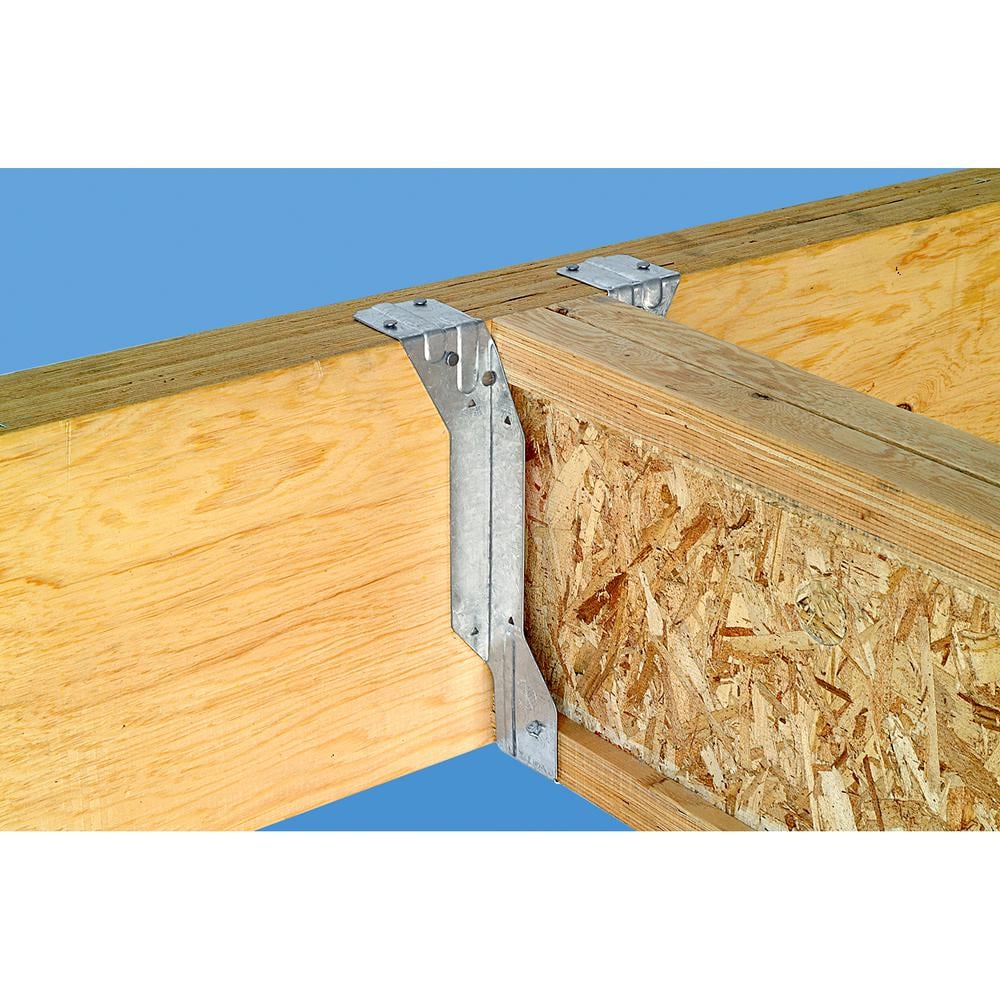

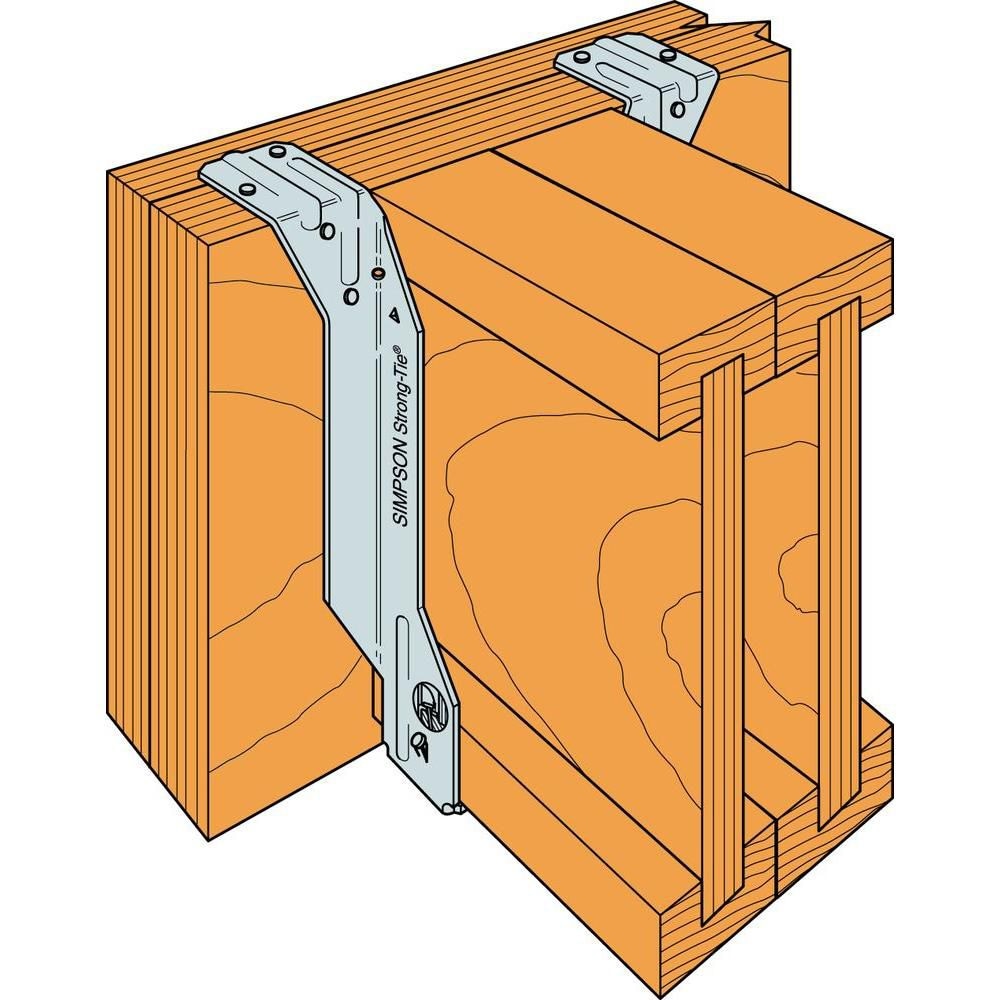

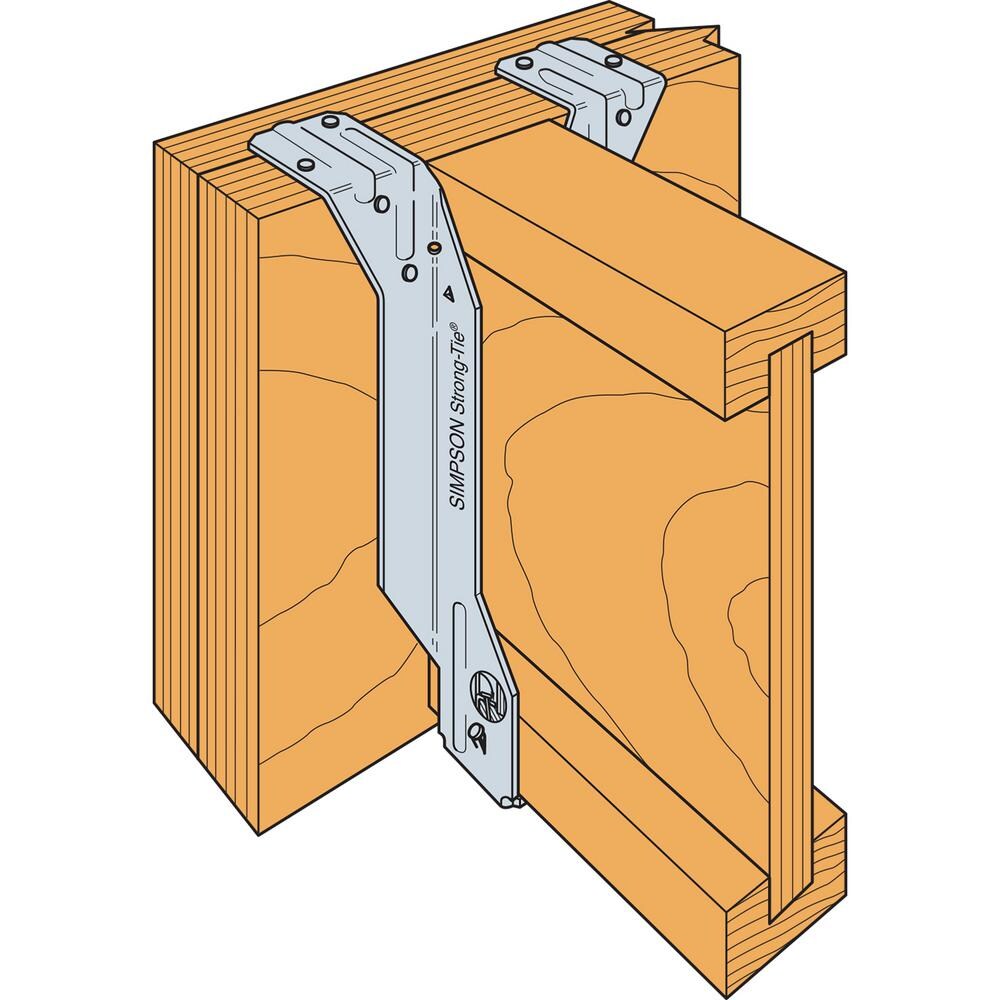

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. MIT top-flange I-joist hangers meet the unique needs of I-joists while offering superior performance and ease of installation. Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle With positive-angle nailing, the nail hole material is not removed Optional triangle nail holes may be used for increased uplift capacity optional uplift nailing requires the addition of properly-secured web stiffeners Actual joist size: 3-1/2 in. x 16 in. Made from 16-gauge steel Galvanized (G90) for extra corrosion resistance
